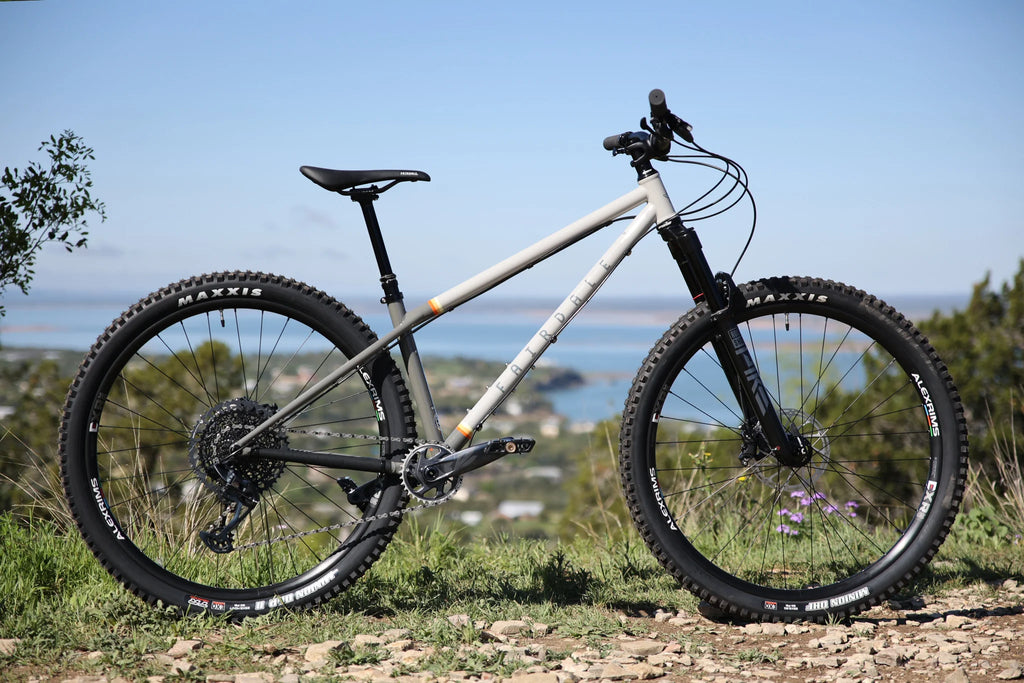

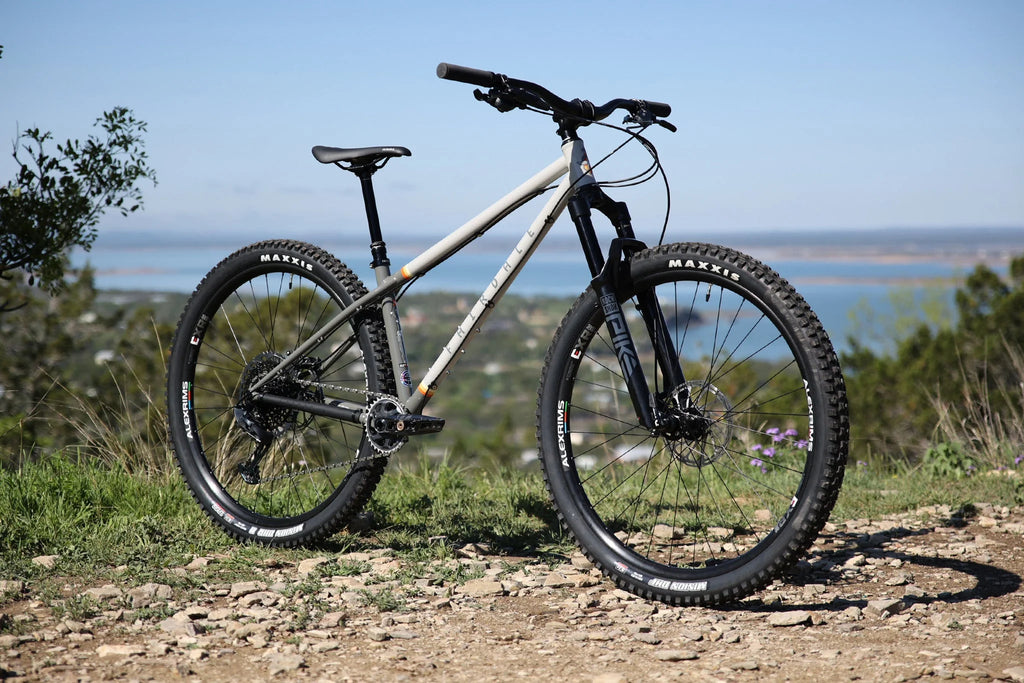

Fairdale Elevator 29" Hardtail MTB

Gloss Battleship Gray in M or L

Introducing the Fairdale Elevator.

Fairdale is happy to introduce the Elevator; our 29" hardtail mountain bike that comes fully equipped with a SRAM GX Eagle groupset, a RockShox Pike fork, Alex wheels, Maxxis tires and more.

The Fairdale Elevator is a BMX-inspired, full chromoly all-arounder with a geometry that is focused on nimble maneuverability and predictable climbing and descending. While many modern bikes are long and low, the Elevator’s unique ride-feel will let you easily throw in a manual or re-adjust your position on a line, thanks to the super short 406mm chainstay length.

As always, making the ride fun is our main priority. This is a bike that lets you feel like a rider again instead of being a passenger. Proudly sticking to Fairdale’s user-friendly approach to frame construction, its straight seat tube will allow you to fully insert a dropper post of the maximum possible drop, and the Elevator’s removable, external cable routing is a breeze for assembly and maintenance.

Bike Features

• SRAM GX Eagle groupset
• RockShox Pike fork
• Maxxis Minion tires
• Alex wheelset

Frame Features

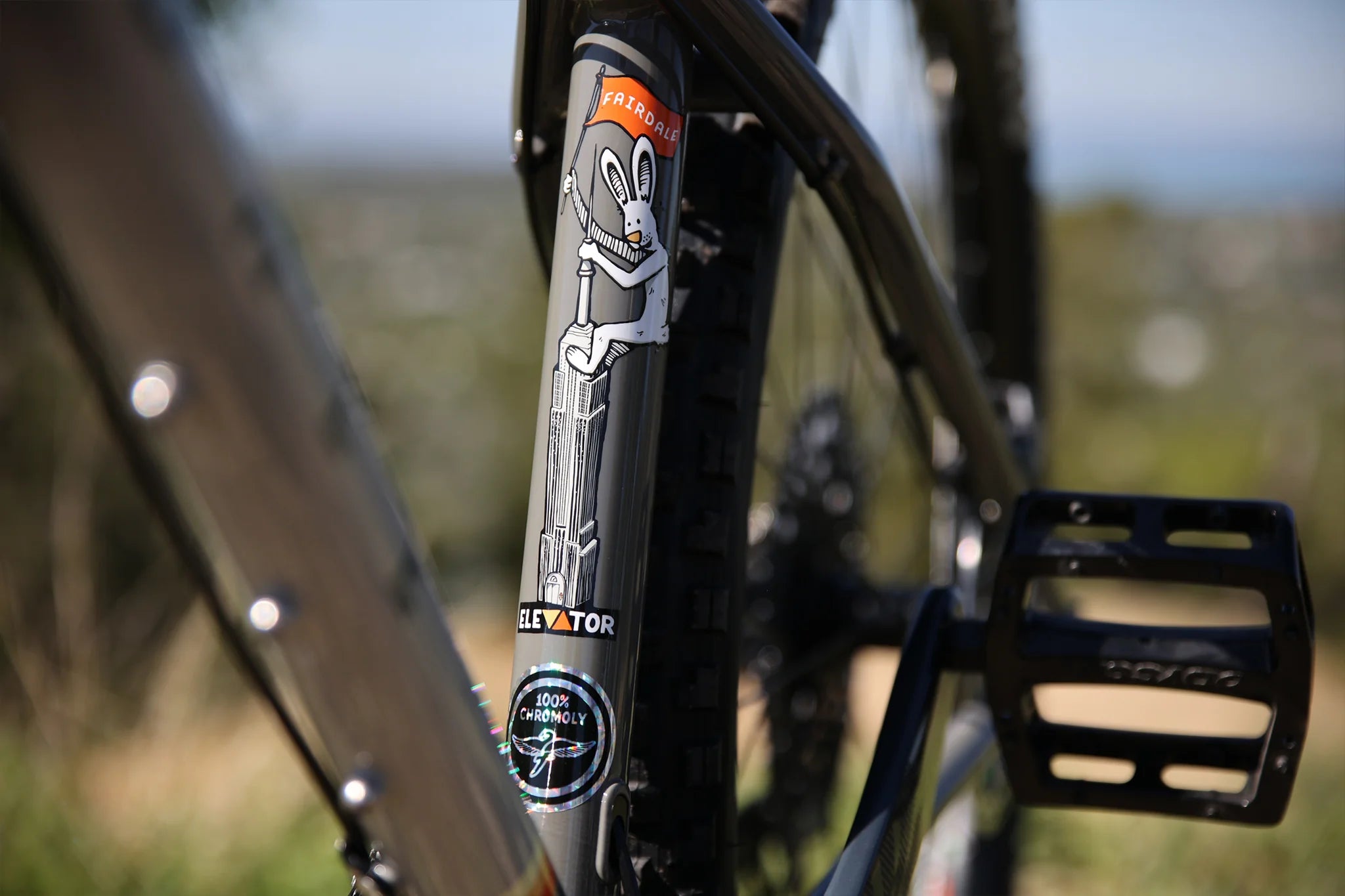

• 100% 4130 chromoly 29” rigid frame
• Butted top tube, down tube, and seat tube
• Highly maneuverable BMX-inspired geometry
• Investment cast yoke allows for extra short chain stays and 2.5” tire clearance
• External brake, derailleur, and dropper post routing with removable hardware
• Extensive hardware for bottles, accessories and ISCG mounting

Sizing

Medium Reach: 5'7" - 5'11" height
Large Reach: 5'10" - 6'2" height

Sizing is approximate. Please consult with your local bike shop to assist with fit.

Specs

Frame: Fairdale Elevator Frame with SRAM UDH

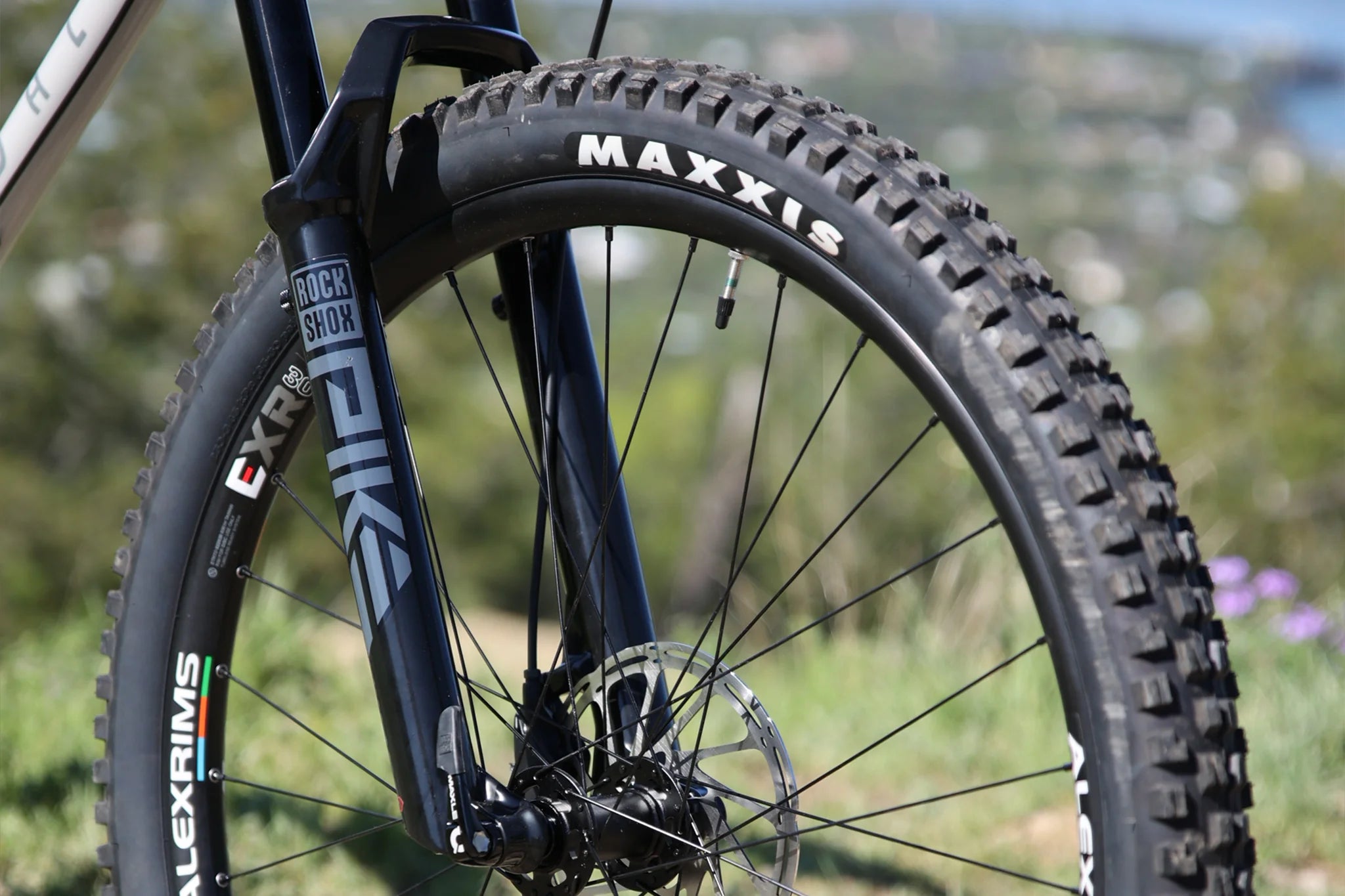

Fork: RockShox - Pike, 130mm Travel, 44mm Offset, 15mm x 110mm Boost Spacing
Handlebar: 30mm Rise, 9° Back, 5° Up, 35mm clamp, 7000 series AL
Stem: 50mm, 35mm Bore
Headset: FSA Orbit ITA

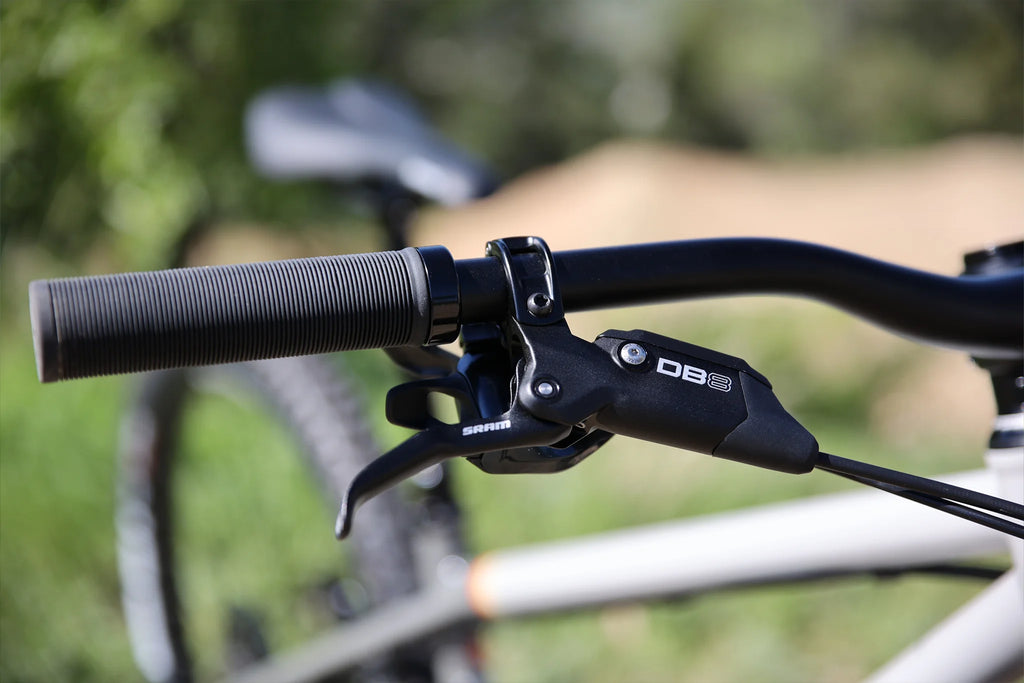

Brake Lever: SRAM DB8 Hydraulic

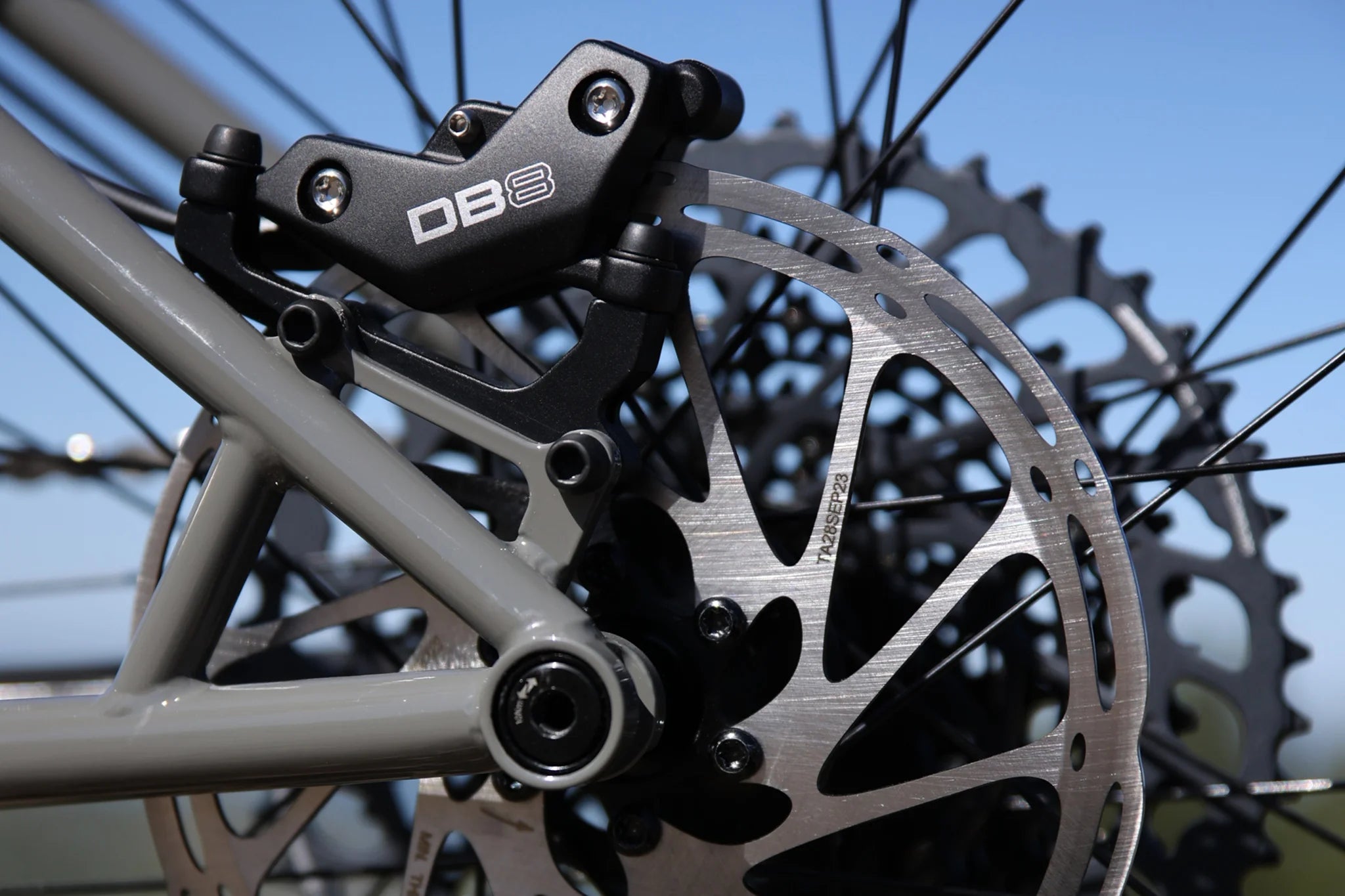

Brakes: SRAM DB8 Hydraulic
Grips: Lock-on
Saddle: Fairdale
Seat Post: TranzX Kitsuma Dropper Post (150mm M, 170mm L)
Seat Clamp: 35mm Fairdale Clamp

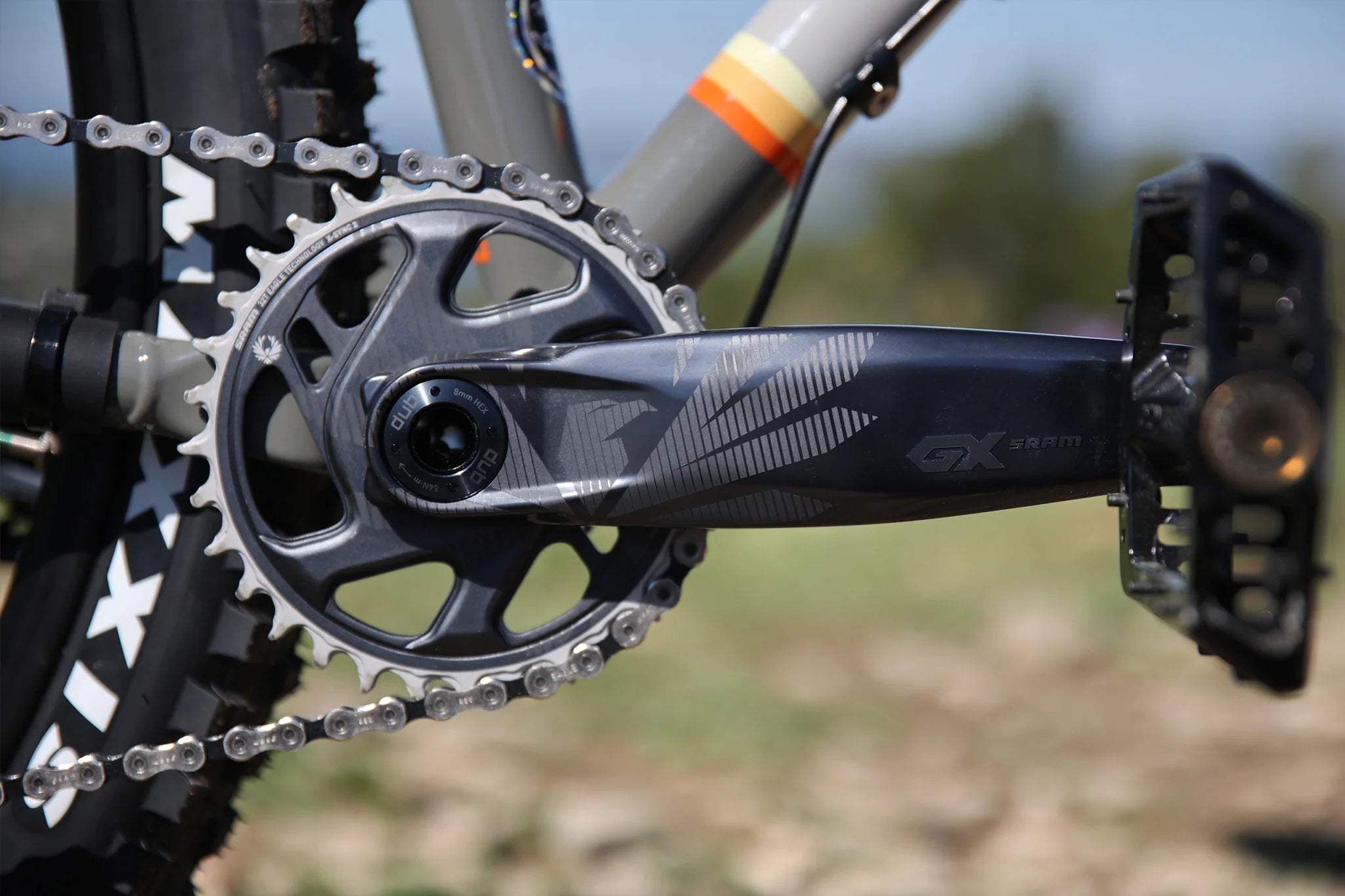

Cranks: SRAM GX, 170mm, DUB, Boost
Chainwheel: 32T X-SYNC™2
BB Parts: DUB, BSA
Pedals: Not Included
Rims: Alex EXR 30
Front Hub: Bear Pawls, 32H, Sealed, 6-Bolt, 15x110mm BOOST
Rear Hub: Bear Pawls, 32H, Sealed, 6-Bolt. 12x148mm BOOST, SRAM XD Driver
Front Tire: Maxxis Minion DHF, 29 x 2.50WT, Dual Compound, EXO
Rear Tire: Maxxis Minion DHR II, 29 x 2.40WT, Dual Compound, EXO/TR
Chain: GX Eagle, 12-speed

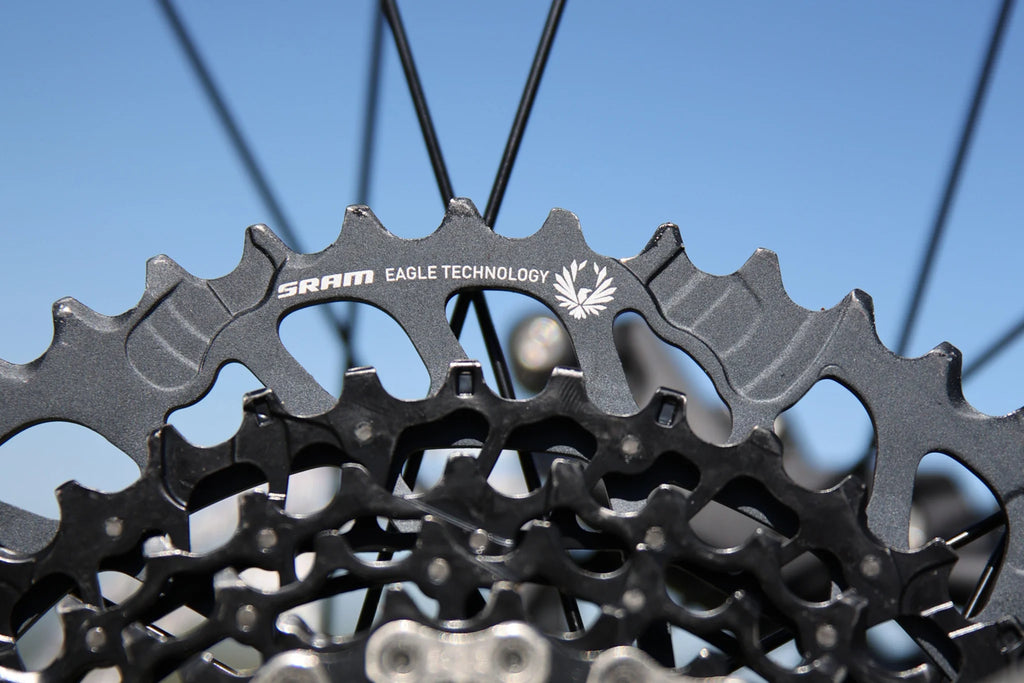

Cassette: GX Eagle, 10-52T, 12-Speed, Black
R. Shift Lever: SRAM GX EAGLE Trigger, X-actuation, 12-speed

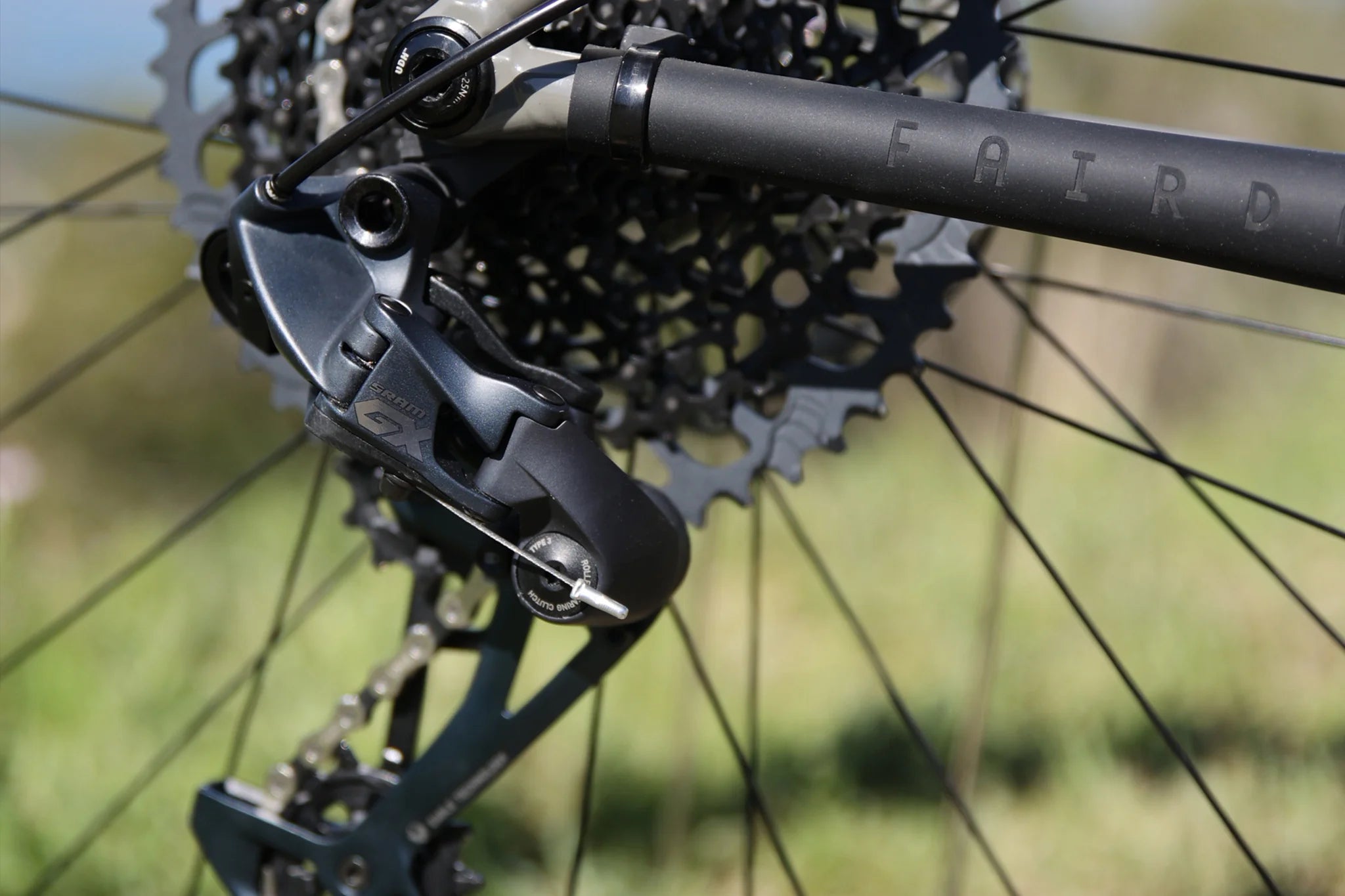

R. Derailleur:  SRAM GX EAGLE, Long Cage

Geometry

*Specs subject to change without notice.
