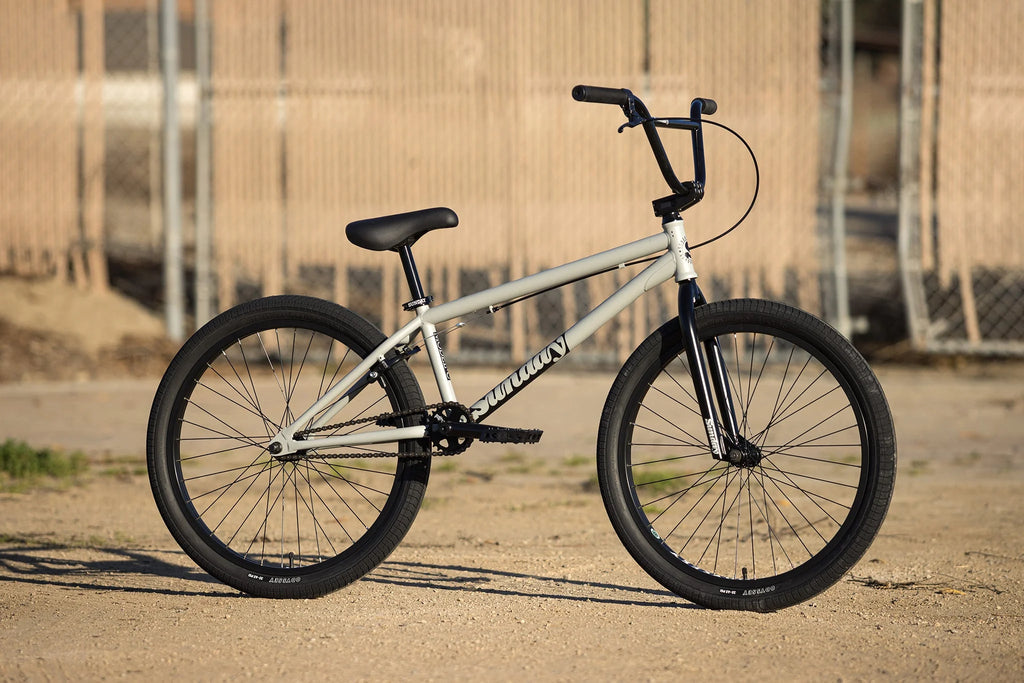

Sunday Model C 24"

Sunday Model C 24"Matte Battleship Gray with 22" tt

The Model C created the modern standard in 24” BMX.

With its proven 20” inspired geometry, this bike can be ridden with a greater sense of control at full speed. Bigger riders will notice its advantages right away. It comes with an awesome Odyssey/Sunday parts package at an affordable price.

When it comes to 24”, the Model C changed the game.

Key Features

• 24" Pro-Style Geometry
• Odyssey Broc Raiford Grips
• Odyssey Springfield Brakes
• Odyssey Twisted PC Pro Pedals
• Sunday Badge Pivotal Seat
• FSA Conical Headset
• Odyssey Stage 1 Rims
• Odyssey Path Pro OEM Tires
• Sealed Front & Rear Hubs

Specifications

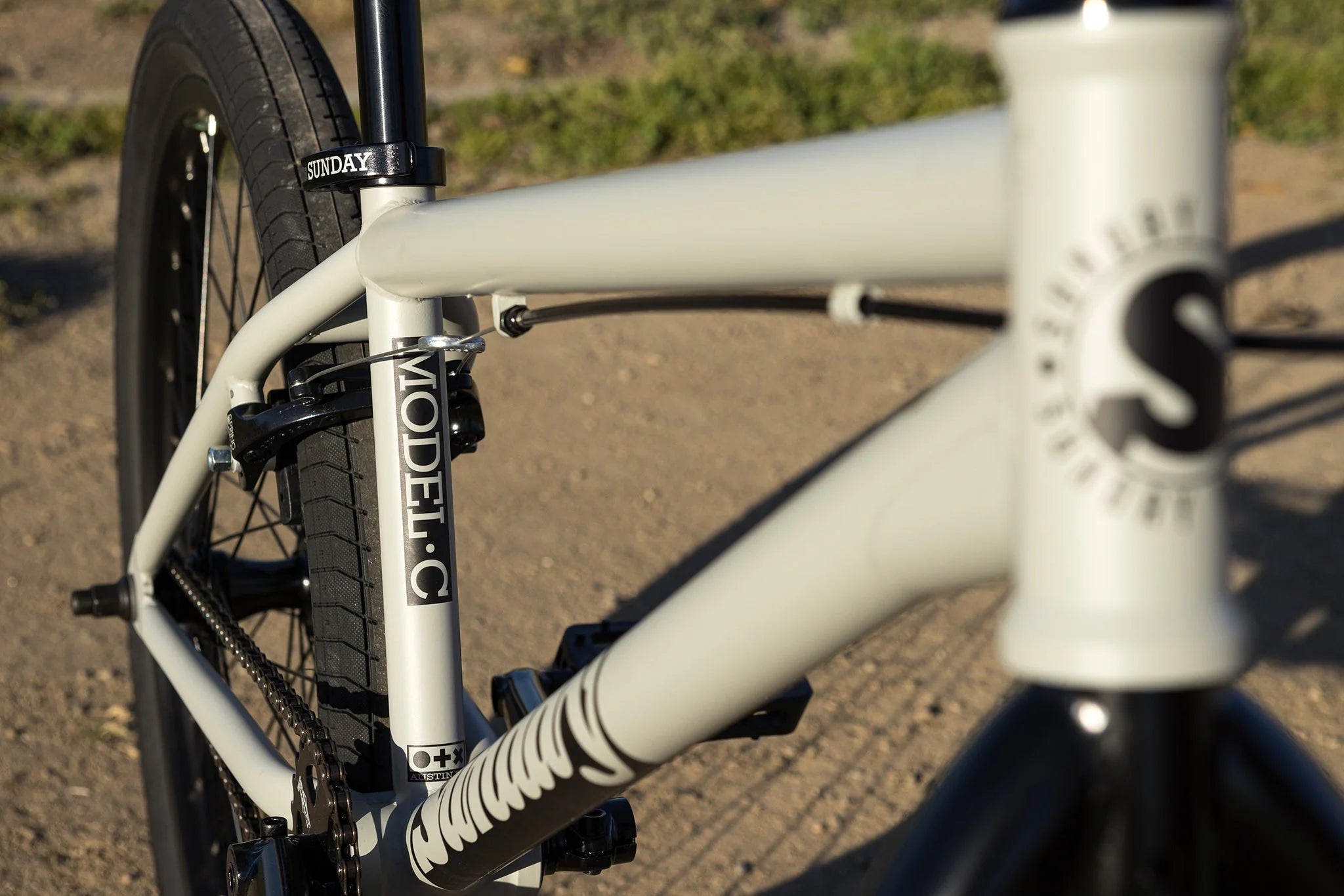

Frame: Sunday Model-C, 24" frame, Hi-Ten Steel w/ Integrated HT, Cr-Mo DT/CS
Fork: Sunday Model-C, 24" fork w/ 2-piece chromoly steerer tube and welded pre-load

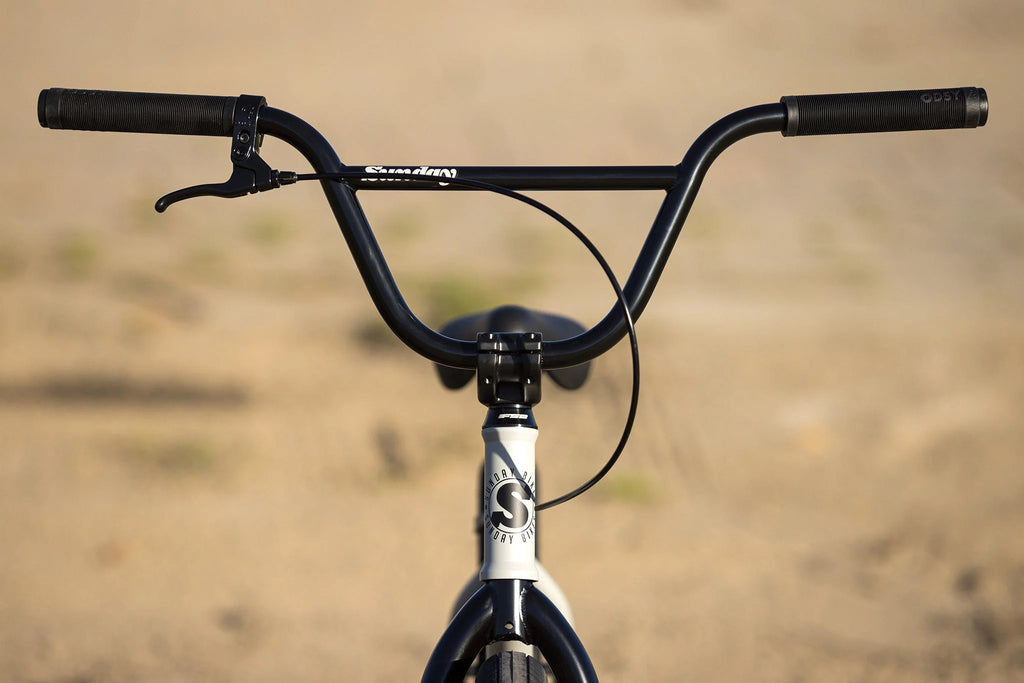

Handlebar: Sunday 24umph XL OEM, 2-piece

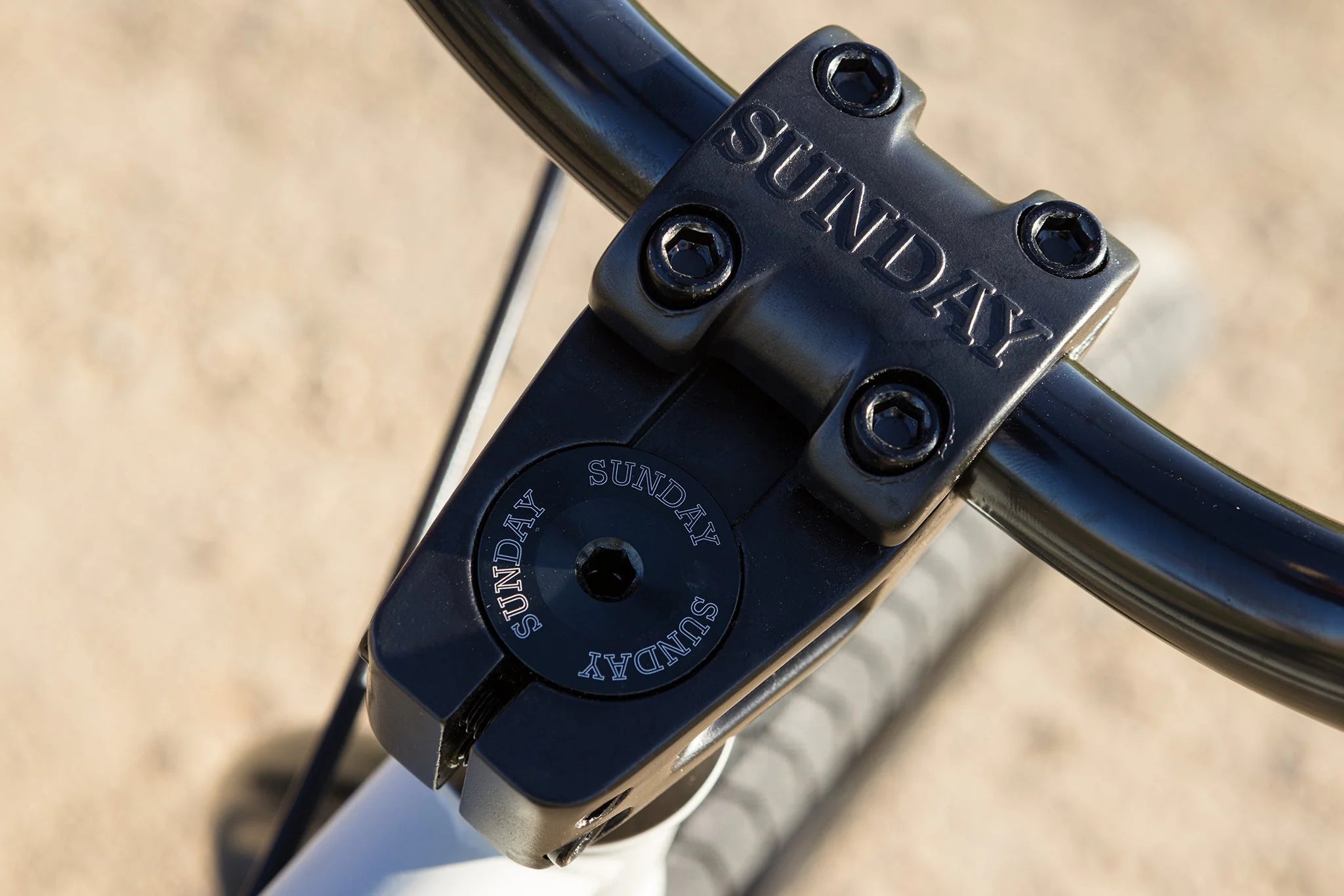

Stem: Sunday Freeze top load, 48mm

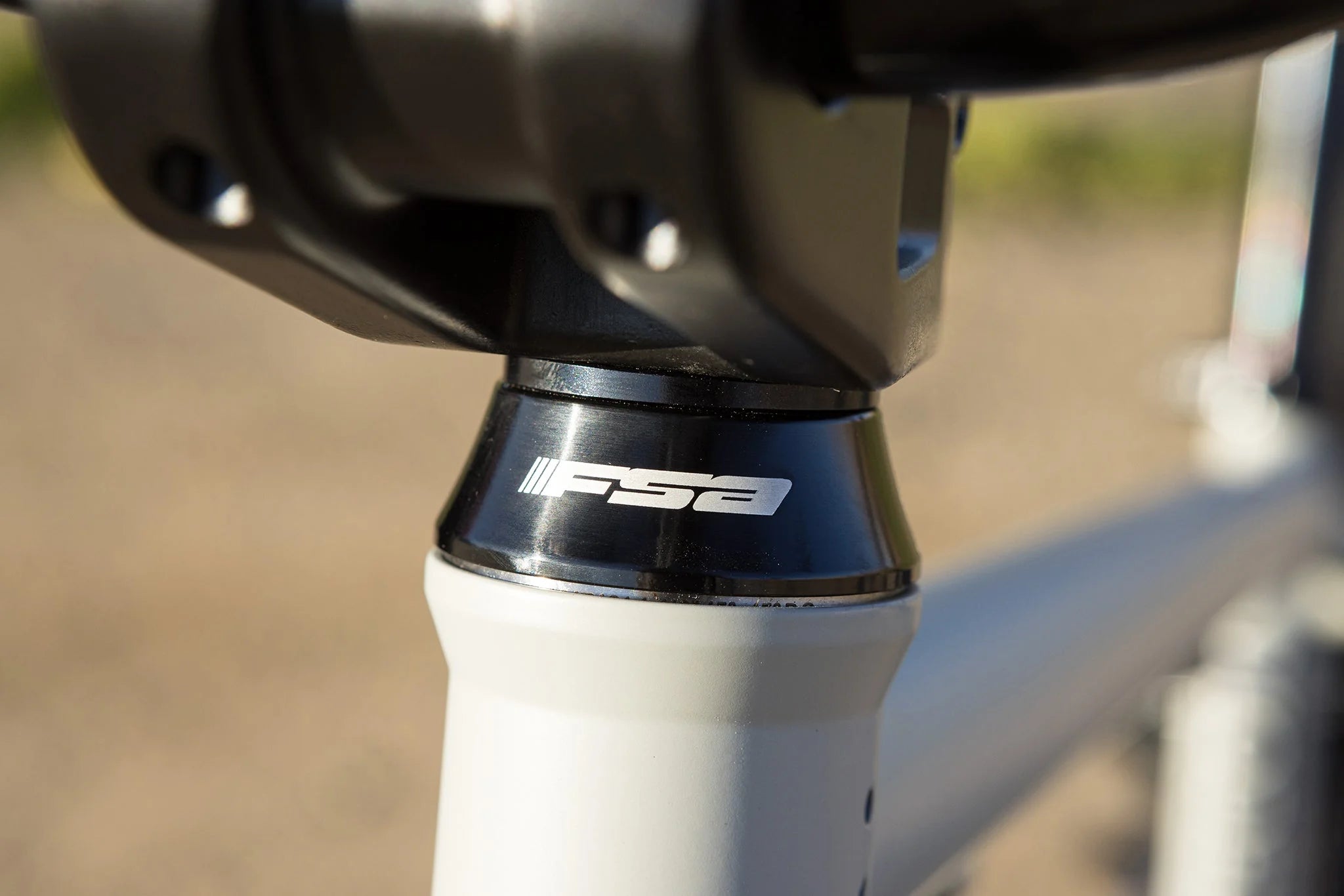

Headset:  FSA integrated conical, 1-1/8"
Alloy Cap: Sunday M16, aluminum

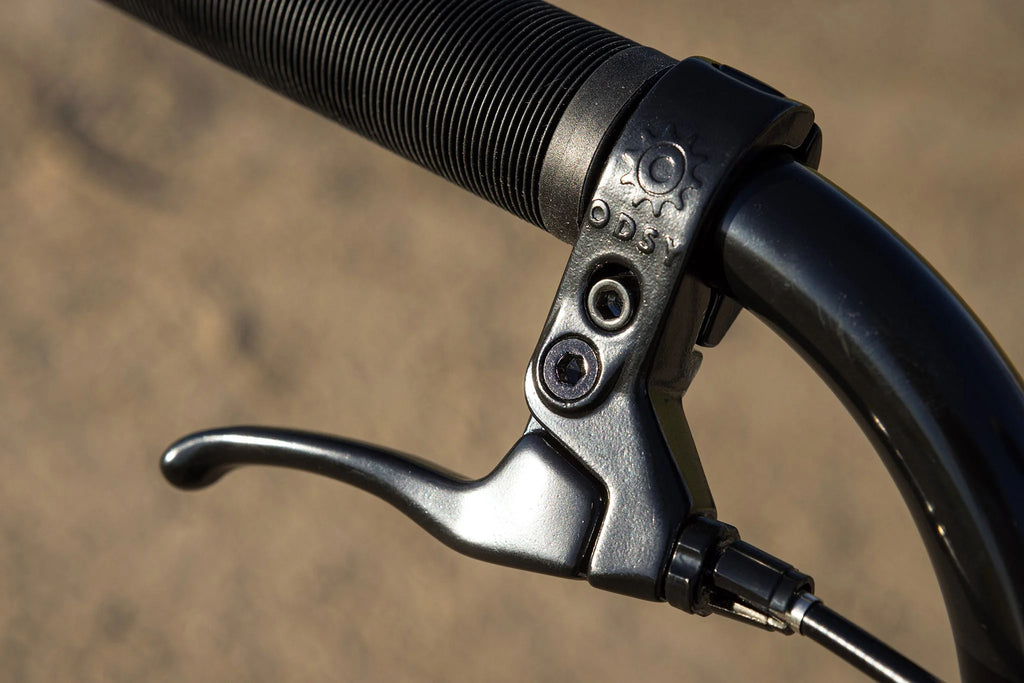

Brake Lever: Odyssey Springfield

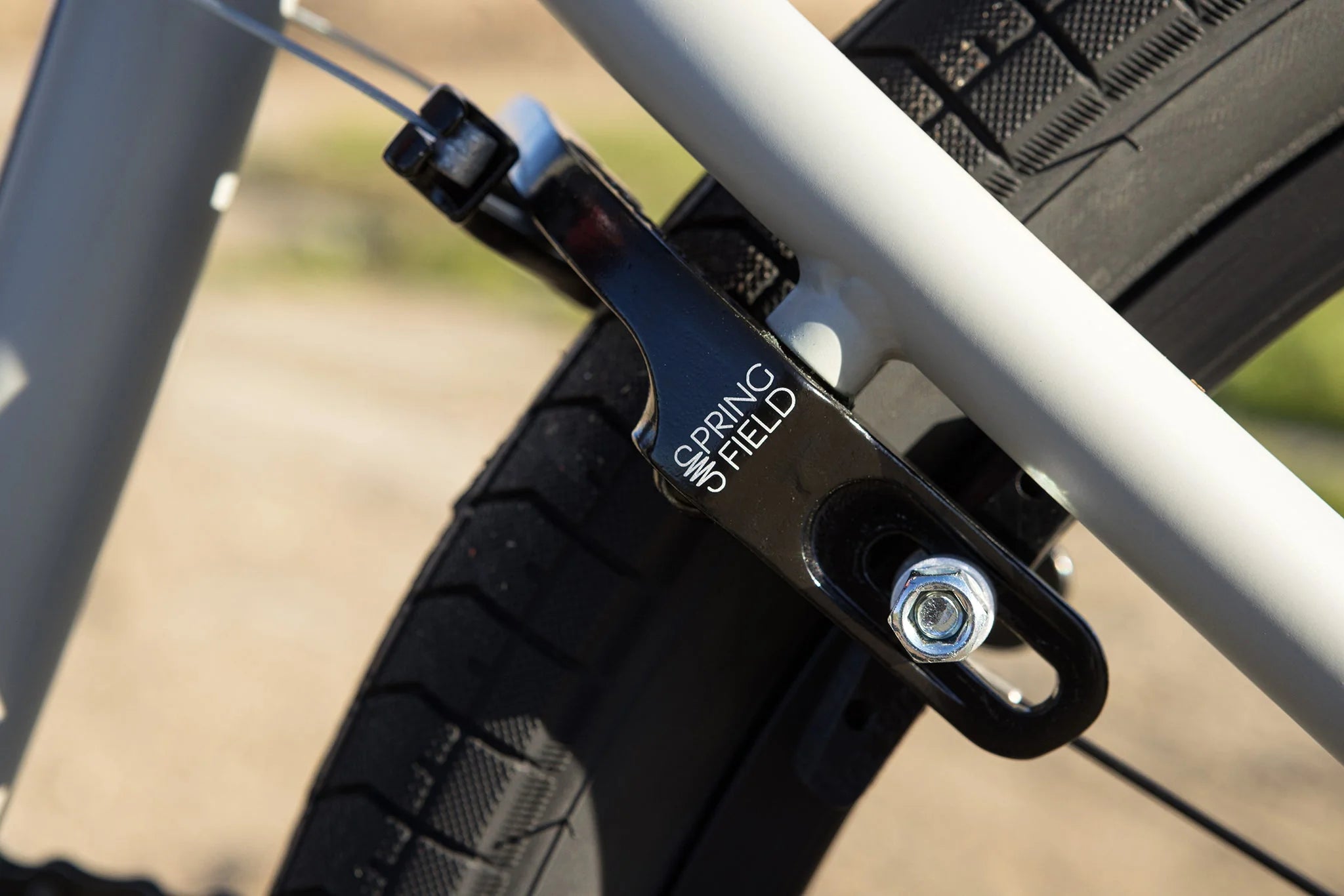

Brakes: Odyssey Springfield U-brake

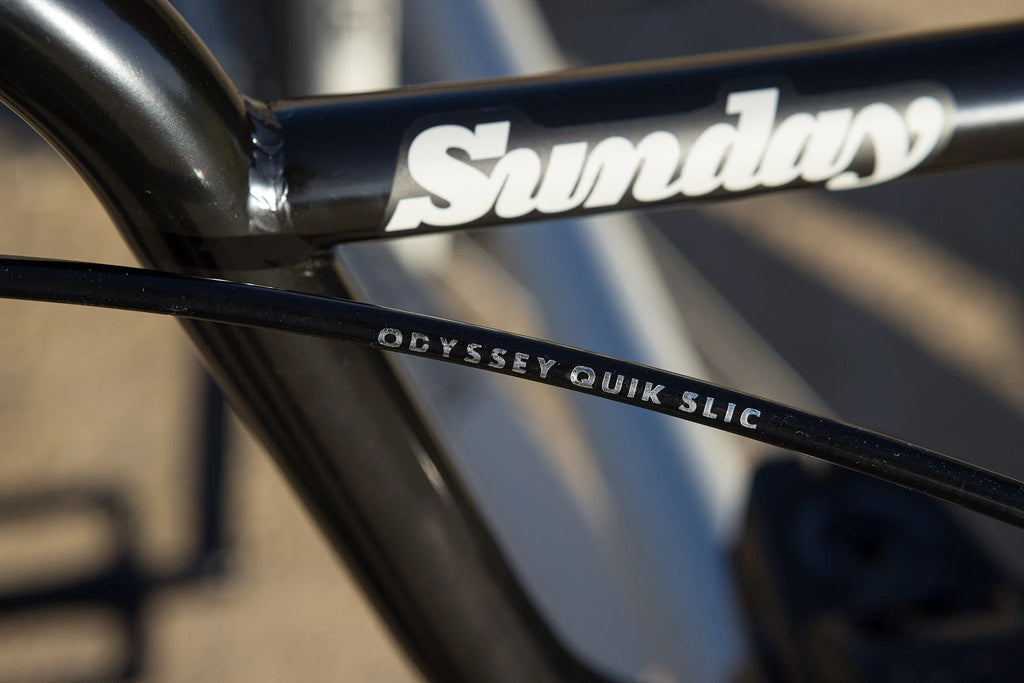

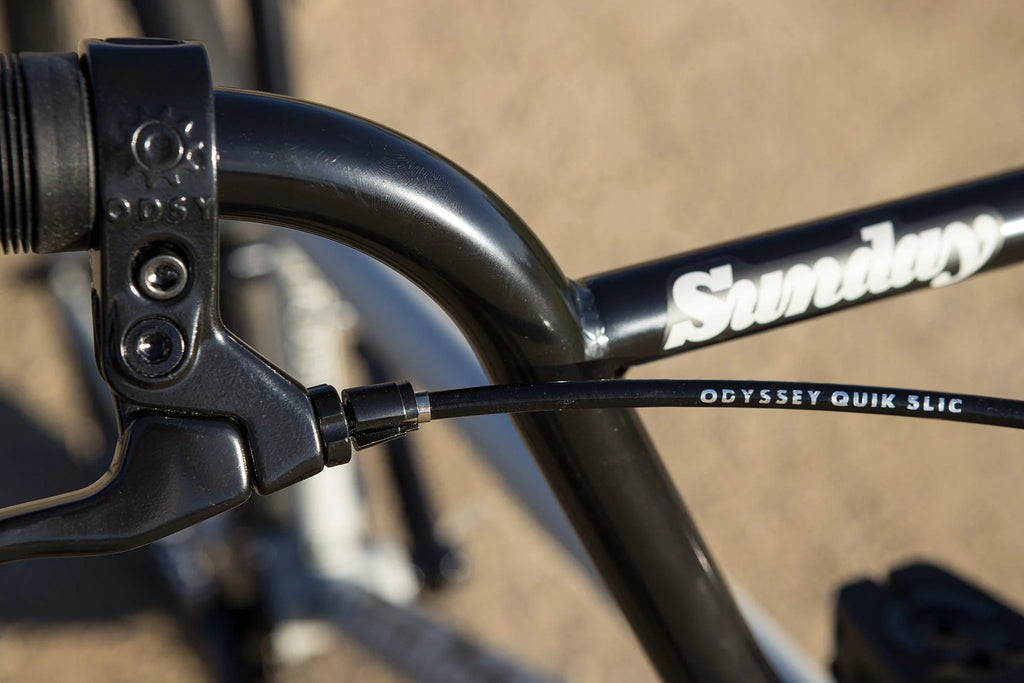

Brake Cable:  Odyssey Quik Slic

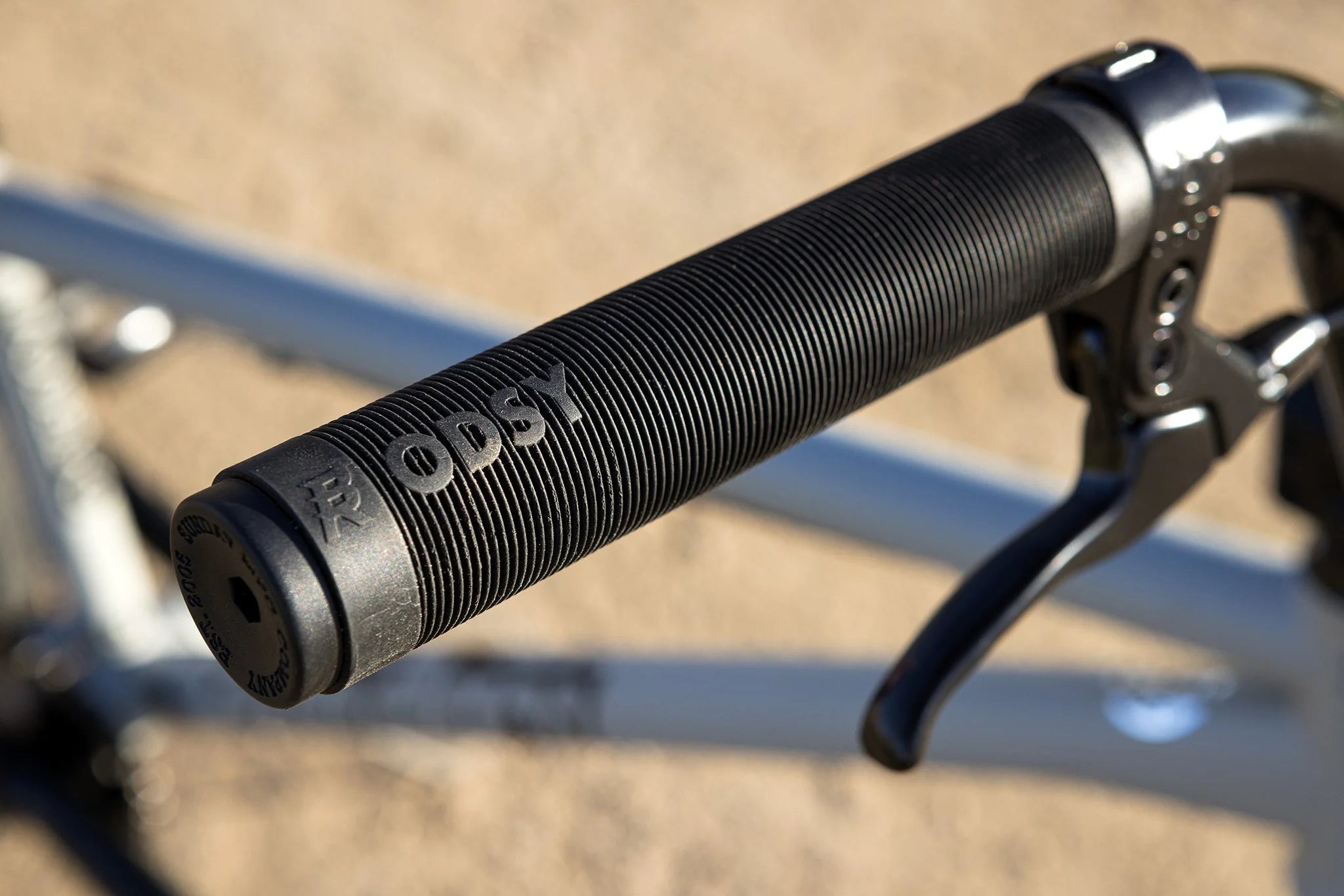

Grips: Odyssey Broc Raiford

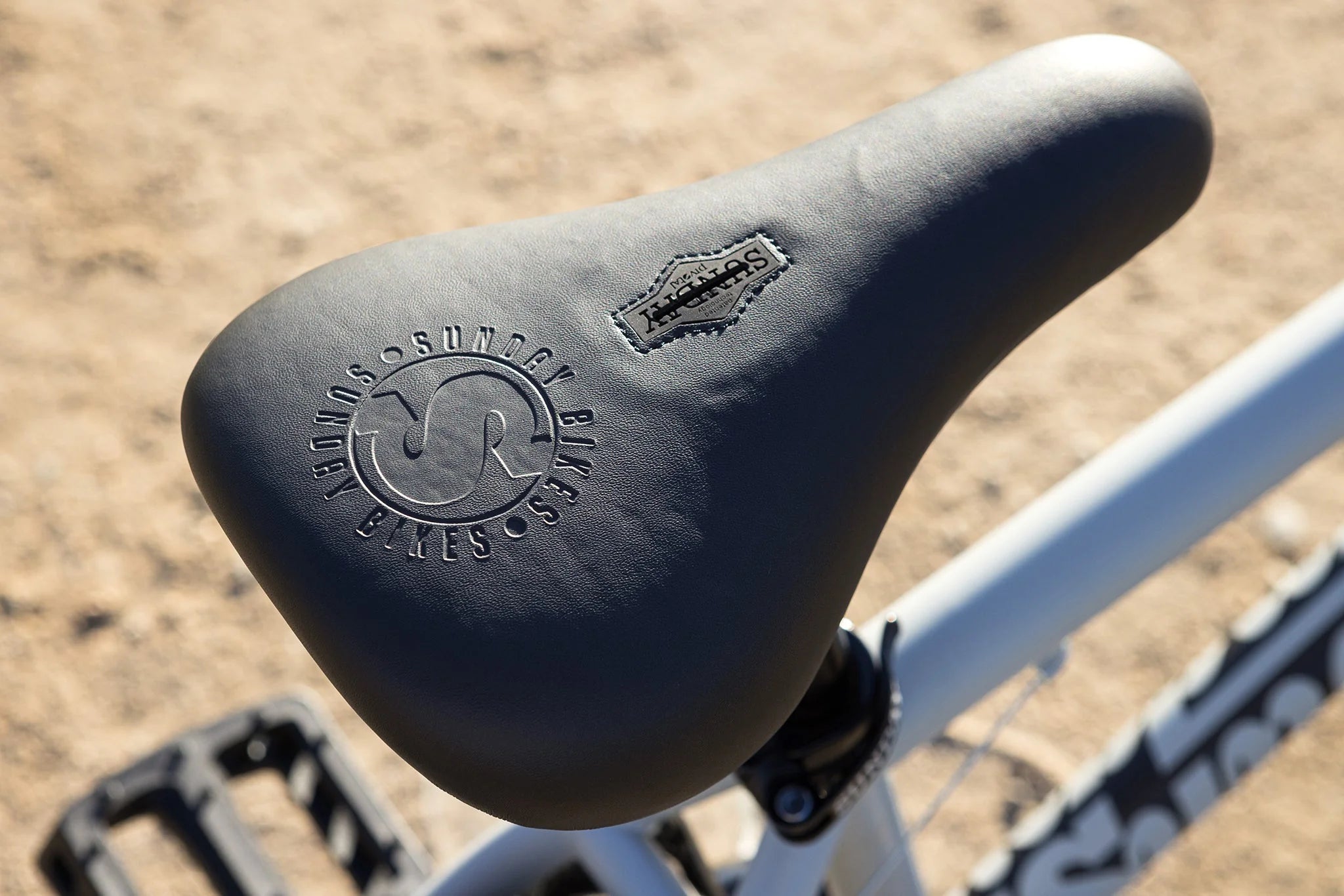

Seat: Sunday Badge, Pivotal
Seat post:  Sunday Pivotal, 300mm

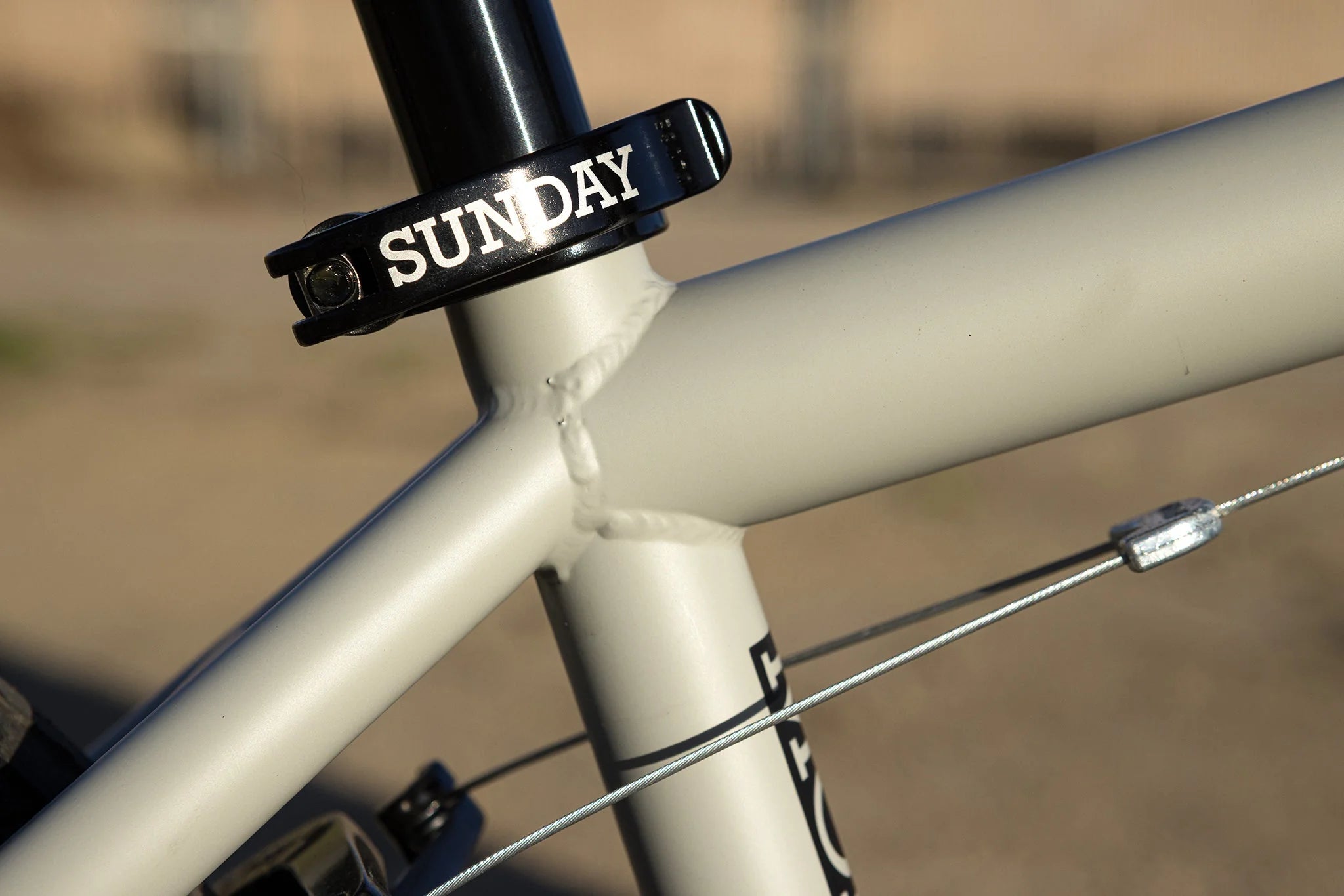

Seat Clamp: Sunday, Quick Release

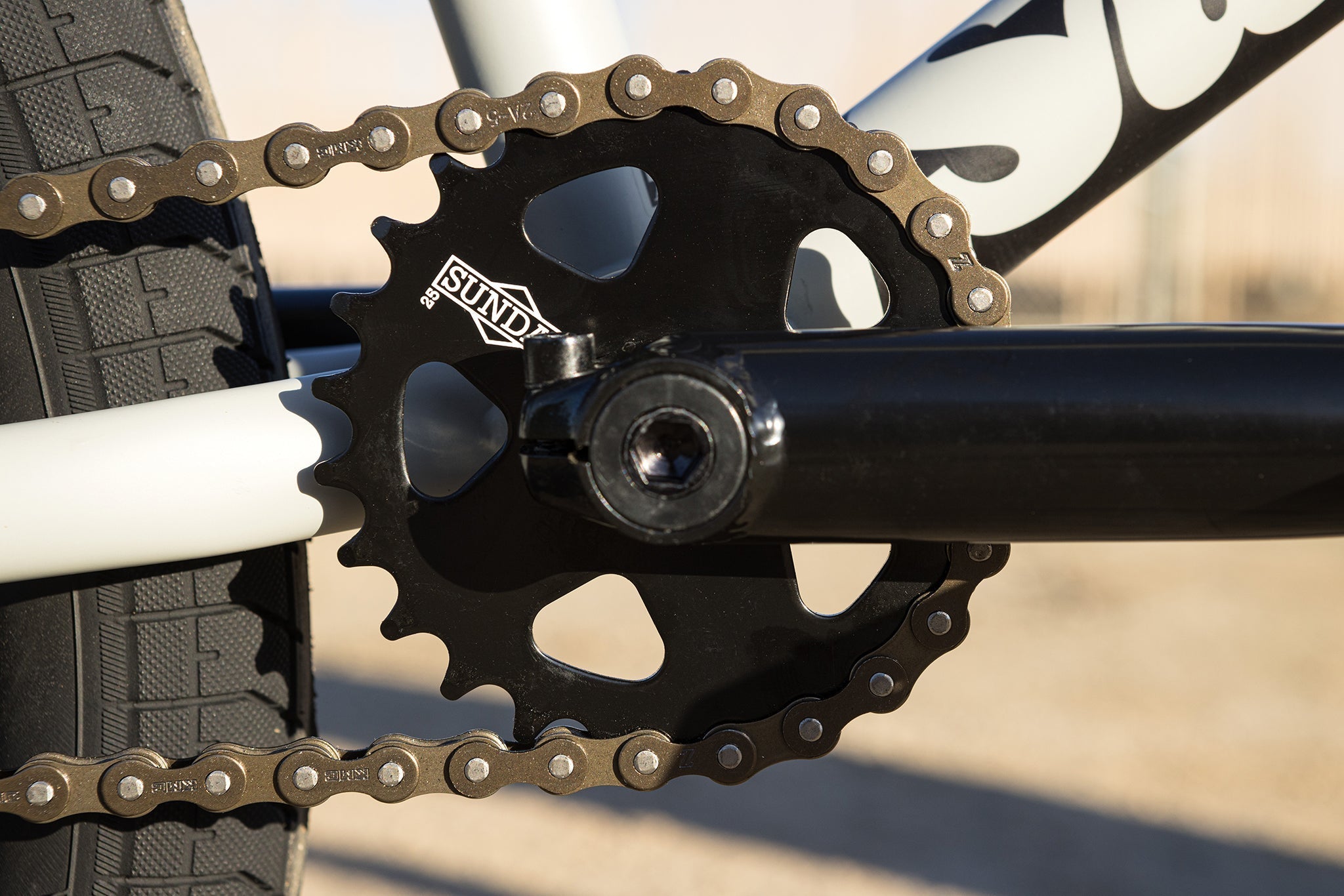

Sprocket: Sunday Sabertooth v2, 25T, steel
Cranks: 175mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm
Pedals: Odyssey Twisted PC Pro

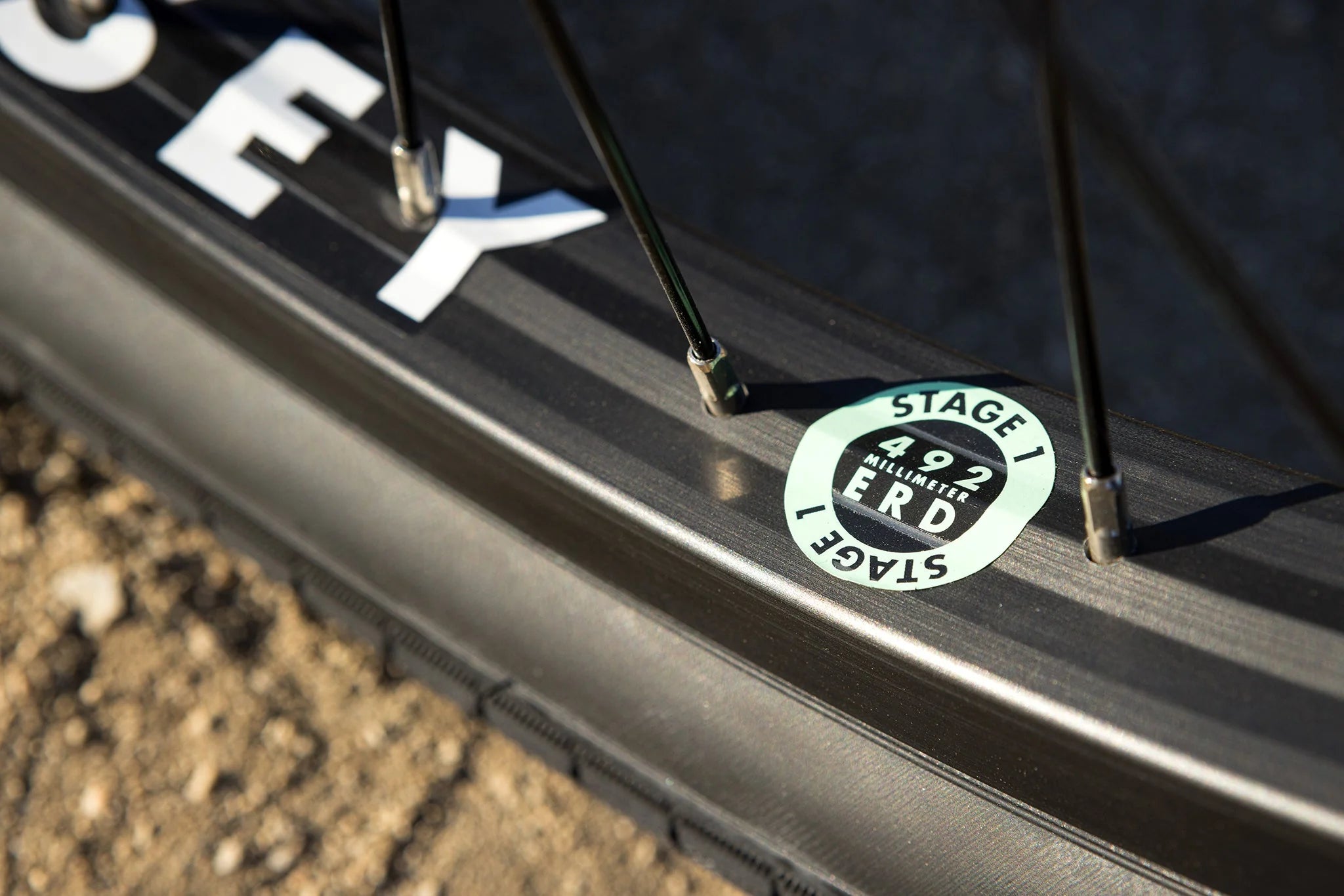

Rims: Odyssey Stage 1, 24", 36H

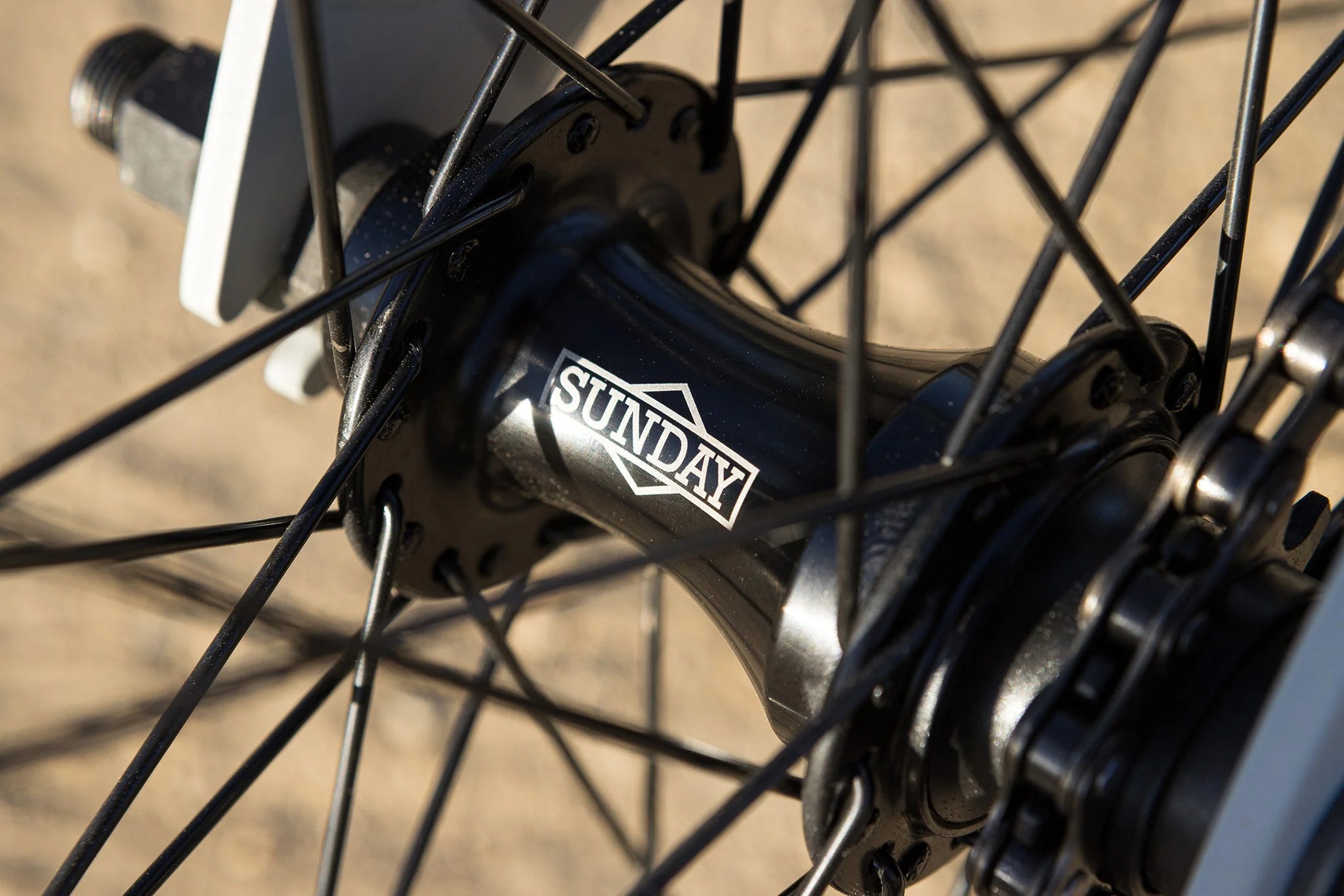

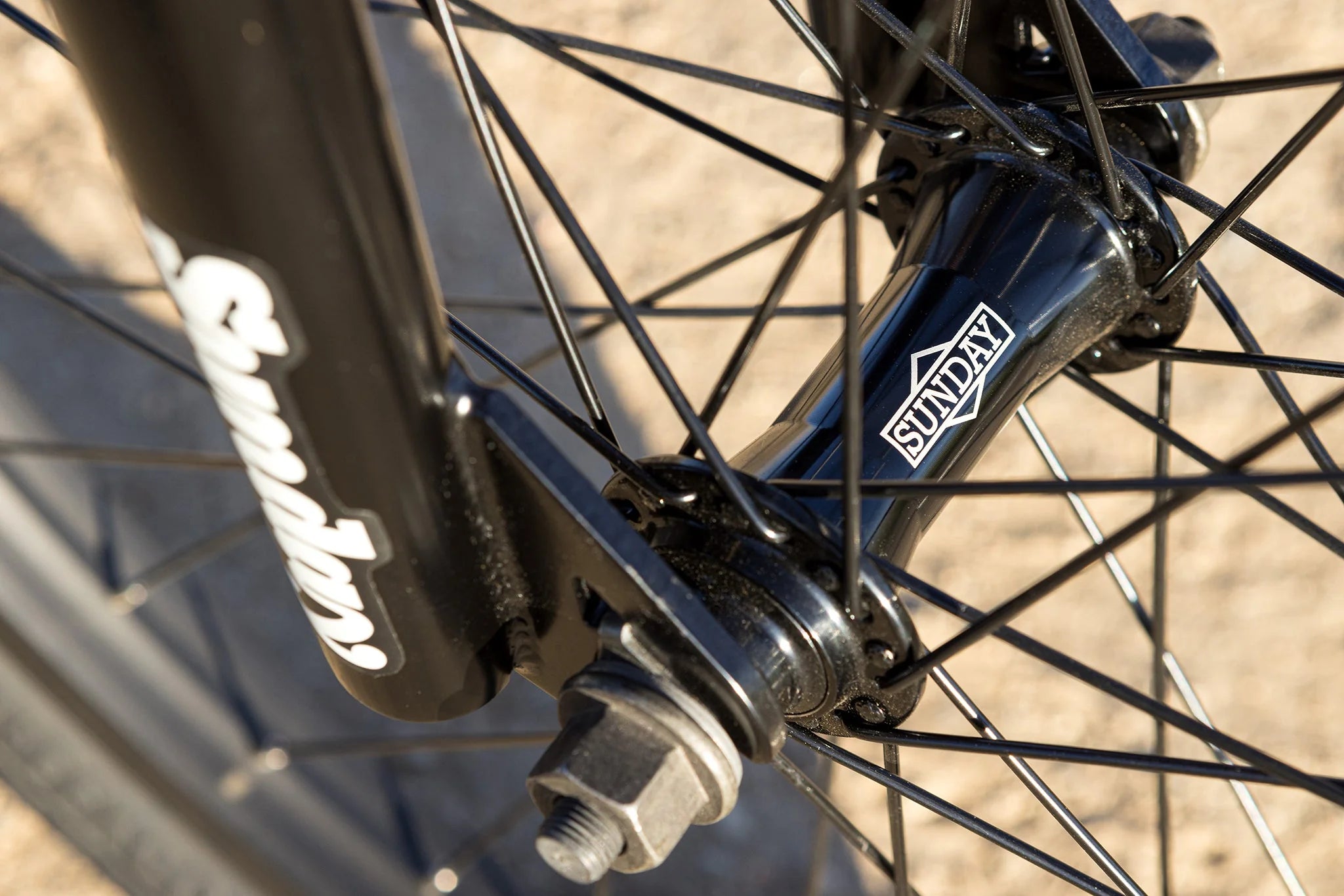

Front Hub: Sunday, 36H, low-flange, sealed , 3/8" axle
Rear Hub: Sunday 36H, sealed, 14mm axle w/ 10T Driver
Spokes: 14g steel, black

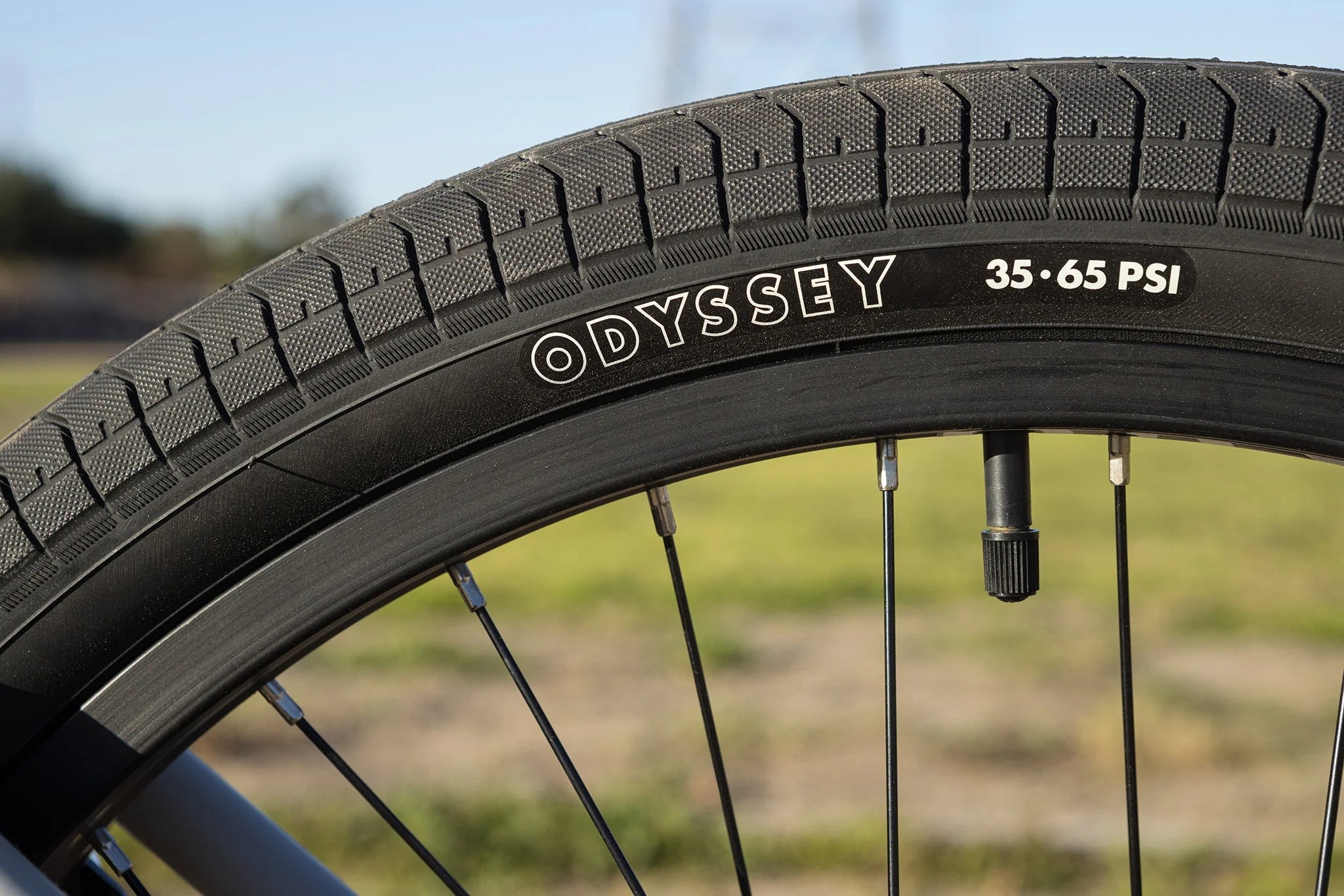

Tires: Odyssey Pursuit OEM, 24 x 2.2" (F & R)
Chain: KMC Z1 wide

Frame Geometry

Top Tube Length: 22"
Head Tube Angle: 74.5°
Seat Tube Angle: 71°
Chainstay Length: 14.6-14.85”
Bottom Bracket Height: 13.75"
Standover: 9.25”

Handlebar Geometry

Rise: 7.75"
Width: 28"
Backsweep: 12°
Upsweep: 4°

Weight

With Brakes: 29.1lbs

*Specs subject to change without notice.
